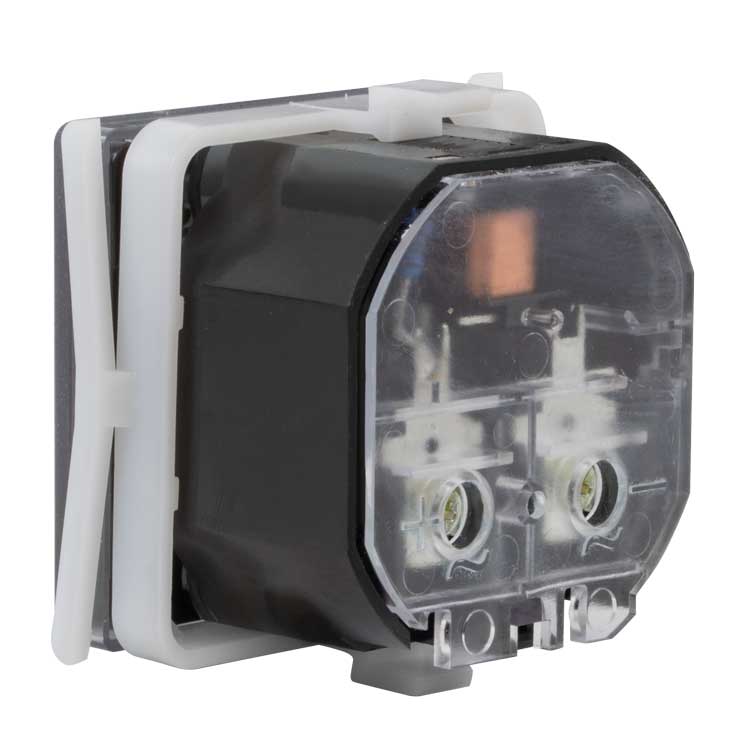

TIME HOUR METER BW4018 400V / 50Hz

48x48 mm
Product No.: 9152400

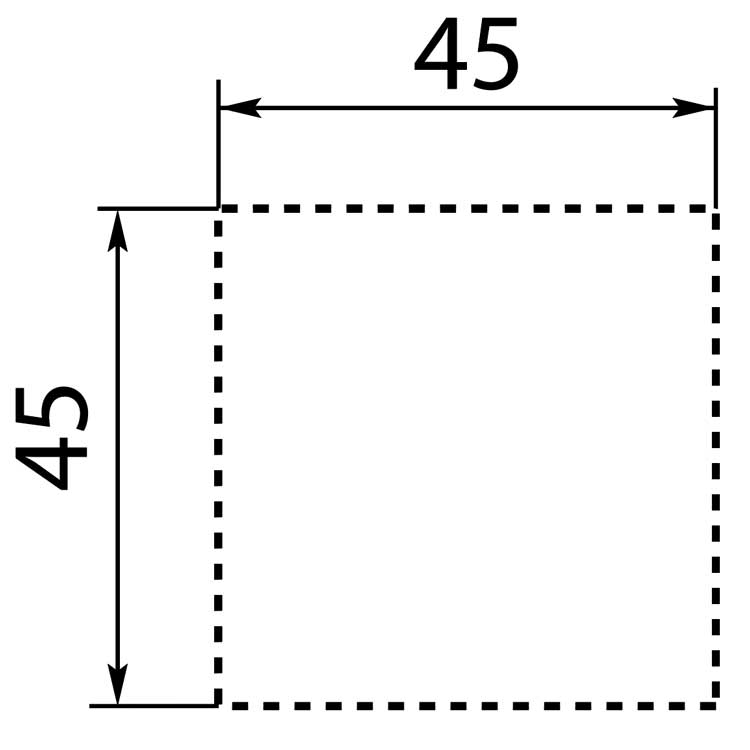

Cut-out dimensions: Square: 45 x 45 mm / Circle: Ø 50.5 mm
Front protection class IP 50 according to DIN EN 60529 (with sealing ring 9152101003 IP 54)
Protection class II: Double or increased insulation of the device.
Connection type Universal connection: screw, solder and AMP plug connection 6.3 x 0.8 mm

Description:
Excellent quality, long service life, DIN dimensions, approvals, without reset

Applications:
The device is intended for use in the following tasks: cumulative measurement of operating hours in control cabinets and systems, operating times of pumps and machines.

OEM No.: 21655
 on stock available
The item has been added to your shopping cart.
The item has been added to your shopping cart.
The item has been added to the watch list.
The item has been added to the watch list.

This article ist not available. Yo can get a message when this article will be available again. Please fill in your mail adress and click on "send".



Cut-out dimensions: Square: 45 x 45 mm / Circle: Ø 50.5 mm
Front protection class IP 50 according to DIN EN 60529 (with sealing ring 9152101003 IP 54)
Protection class II: Double or increased insulation of the device.
Connection type Universal connection: screw, solder and AMP plug connection 6.3 x 0.8 mm

Description:
Excellent quality, long service life, DIN dimensions, approvals, without reset

Applications:
The device is intended for use in the following tasks: cumulative measurement of operating hours in control cabinets and systems, operating times of pumps and machines.

OEM No.: 21655

Power
0,15 W
Series
BW 4018
Temperature
-15°C - +55°C
Tension
400V - 50Hz
